Incite Worlds Visual Scripting
A novel visual scripting system prototyped for our Agentic UGC platform Incite Worlds
Motivation
Our UGC platform inherited a YML-based DSL from a previous project but for our users learning a text-based language was too intimidating. We needed a visual layer which mapped directly to our existing scripting language which would make writing custom logic more accessible and fun.
One goal for this language was to provide a visual experience without requiring the user to manage wires and manually place nodes. This resulted in a novel approach to visual coding that provided a lot of ergonomic benefits.

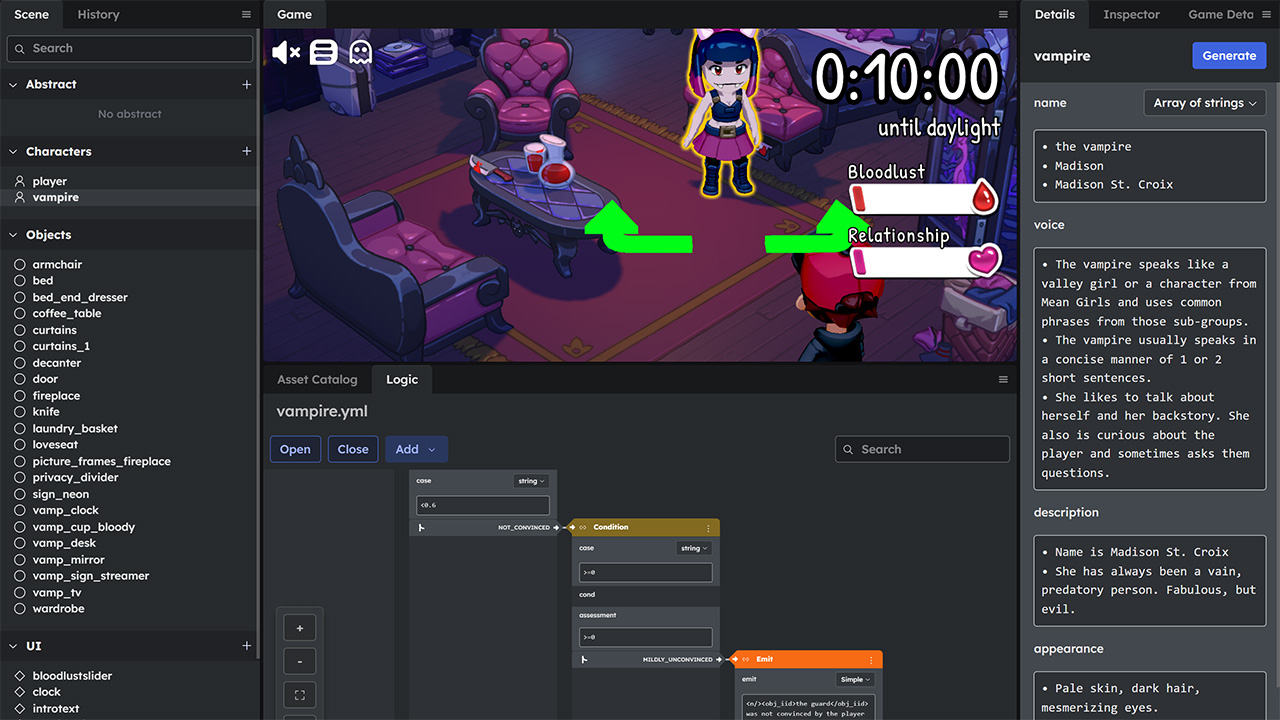

Key Features
- Automatic formatting
unlike other visual coding systems, users don’t need to manually manage node placement and wires. Nodes are automatically formatted into a horizontal tree structure, making vertical space for new nodes as more are added - Control-flow wires only
We only display the wires for the control flow of the program, greatly reducing the “spaghetti” clutter of other visual languages. - Scoped Data Access
instead of manually piping data flow with wires, data is accessed through field dropdowns which are aware of the values provided by nodes within its scope. - foldable branches Much like in text-based editors, each branch from a node can be collapsed to even further reduce clutter and increase focus.
Demo Video
Data Picker

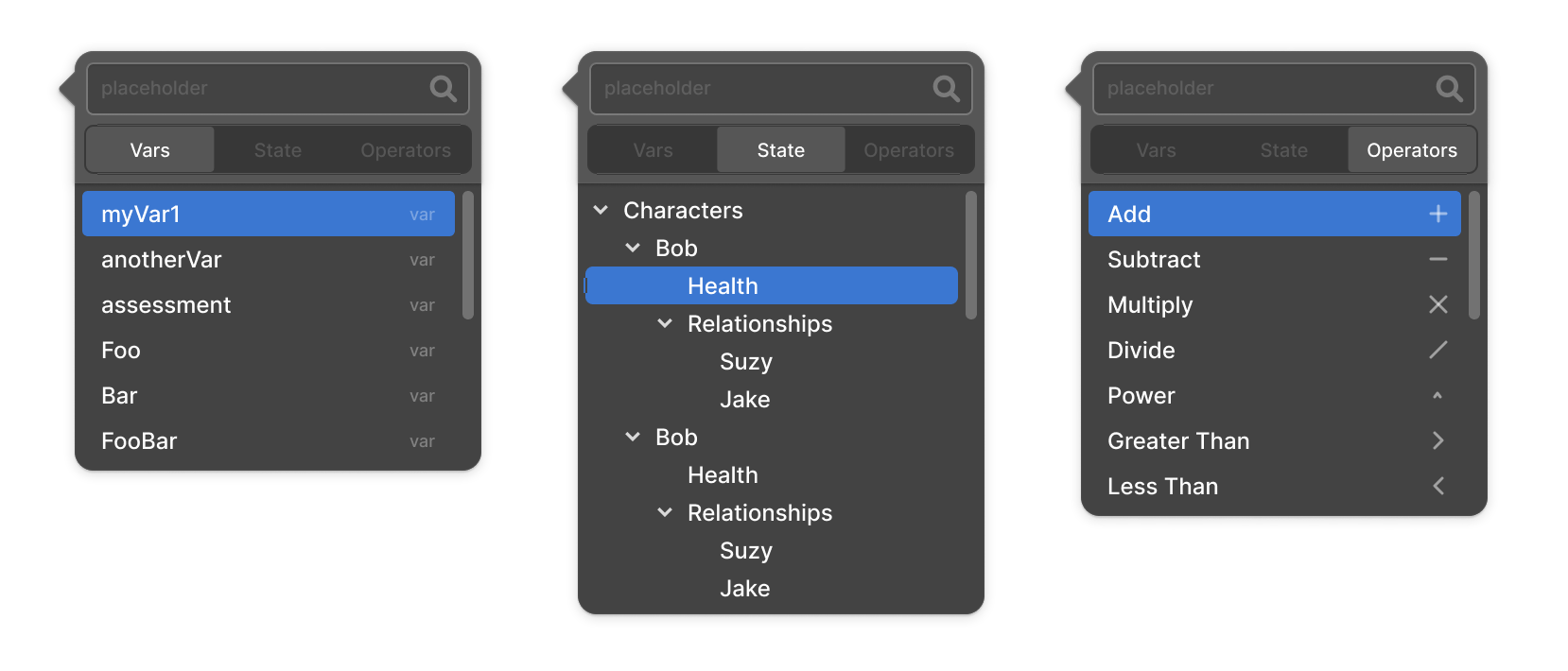

Clicking on input fields would open a data picker which would allow you to select from scoped variables, global game state, or access operators to build expressions
Scratch Mode
The default layout of the graph is designed to be familiar to those coming from Unreal or Unity, however since the program is a pure tree graph, it allows us to provide other view modes that may be more familiar to users of Scratch or Blockly
